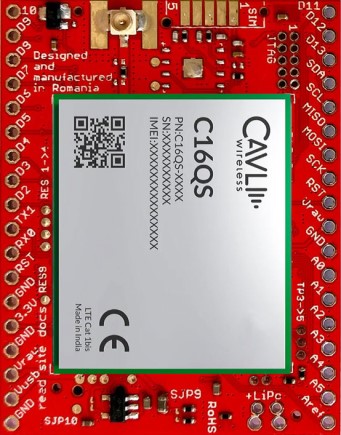

xyz-mIoT IoT shields - (ultra) low power ARM0 shields w. LTE, low power LTE, 2G modem or stand-alone versions. Arduino programmable.

s-Sense I2C sensors - Air quality sensor breakout boards having I2C conectivity.







Product selector by SKU: ITBP-







security, automation, monitoring, IoT and special purpose equipments

security, automation, monitoring, IoT and special purpose equipments

security, automation, monitoring, IoT and special purpose equipments

599,95 Euro

hourglass by itbrainpower.net - STRATUM 1 NTP server GNSS synchronized
SKU: ITBP-10002 [P/N NET-STRATUM1#001]

Non-Internet dependent (independent and isolated) STRATUM 1 NTP server having quite accurate time reference (bellow 20 nsecs. typical) due to the high performance embedded GNSS engine and optimized architecture

Specifications:
-primary time source: GNSS PPS (pulse per second)
-over all accuracy: +-20ns typical
-Ethernet port: 10/100 BaseT, full-duplex with auto-negotiation
-highly sensitive, high PPS accuracy GNSS engine embedded
-Quad core ARM running at 240Mhz
-FLASH disk and RAM disk
-Debian based frozen Linux 2.4 for ARM
-NTPD and GNSS processes watch-dog
-high gain GNSS active antenna, 28dBi, magnetic, 5m cable
-power consumption: ~ 1.5W
-input voltages range: between 6.5-19.0V
-temperature range: -10 to 50 Celsius degrees
-dimensions: 130x85x30mm
-weight: around 130g

Designed and manufactured in EU.
Available in stock.
Add to cart To checkout




349,95 Euro

smsgw by itbrainpower.net - SMS gateway with parallel processing
SKU: ITBP-10003 [P/N NET-WEBSMSGW#001]

Stand-alone HTTP(s) Linux gateway designed to send SMS in GSM networks.

Specifications:
-Quad core ARM running at 240Mhz up to 1080 MHz
-RAM 512Mb
-FLASH disk 8Gb and RAM disk
-modem: Quectel M95FA (2G/GSM)
-GSM frequencies: 850/900/1800/1900 MHz (GLOBAL coverage)
-SIM support: nano-SIM format
-Ethernet port: 10/100 BaseT, full-duplex with auto-negotiation
-Debian based Linux 2.4 for ARM
-SSH access: root user
-configured services: Apache, PHP, MySQL, Python, sshd and more
-pre-loaded WEB listeners: two ("one to one" and "one to many") for SMS injection
-GSM antenna, 2dBi, self-adezive, 3m cable
-power consumption: ~ 2.5W
-input voltages range: between 6.5-19.0V
-temperature range: -10 to 50 Celsius degrees
-dimensions: 130x85x30mm
-weight: around 140g

Designed and manufactured in EU.
Available in stock.
Add to cart To checkout




329,95 Euro

THSMON basic by itbrainpower.net - Temperature, humidity, 220V failures, access and flood monitoring system with SMS alarm
SKU: ITBP-10001 [P/N ENV-THSMON#001]

Stand-alone system designed mainly for air temperature and humidity monitoring in "safety zone" mode. By proper sensors integration, events as 220V mains failures, physical access and water floods may be detected and notified via SMS.

Specifications:
-16 bits micro-controller running at 40Mhz
-internal watch-dog as system supervisor and boot manager
-internal RTCC w. GSM network time synchro
-modem: Quectel M95FA (2G/GSM)
-GSM frequencies: 850/900/1800/1900 MHz (GLOBAL coverage)
-SIM support: mini-SIM format
-GSM antenna, 2dBi, self-adezive, 3m cable
-THS interface: x1 I2C 3.3V dedicated for "s-Sense HDC2010 by itbrainpower.net" sensor
-TAMPER input: x1 for magnetic reed contacts
-FLOOD input: x1 for floating reed sensor
-sensor temperature range: -40 ~+125 Celsius degrees
-sensor humidity range: 0-100%
-sensor temperature accuracy: +-0.2 Celsius degree, typical
-sensor humidity accuracy: +-2%.
-temperature reported resolution: 1 tenth of degree
-humidity reported resolution: 1 tenth of percent
-power consumption: ~ 2.5W
-input voltages range: between 5.0-6.25V
-temperature range: 4 to 50 Celsius degrees
-dimensions: 145x38x32mm
-weight: around 130g


Designed and manufactured in EU.
Available in stock.
Add to cart To checkout




Bellow, compatible accesories:


23,80 Euro

coaxial cable 10m, connectors SMA F and SMA M, for GSM, 3G, 4G/LTE, 5G, GPS, WIFI or LORA antennas
SKU: ITBP-0020 [P/N ITBP-EXT-ANT-10M-1#001]


Specifications:
-frequencies: 30~2400MHz
-connector a: SMA female
-connector b: SMA male
-RF gain/100MHz: -0.3dBpm;
-RF gain/100MHz: -0.3dBpm;
-RF gain/440MHz: -0.8dBpm;
-RF gain/1000MHz: -0.9dBpm;
-RF gain/2400MHz: -2.4dBpm;
-cable type: RG174
-cable length: 10m
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%

* compatible accesory.
Available in stock.
Add to cart To checkout




19,90 Euro

Professional multi-band 5G LTE antenna, 5.5 dBi, rod type, SMA, swivel, no cable
SKU: ITBP-0019 [P/N ITBP-5G-ANT-SMAM#001]


Main specifications
- frequencies: 698-960 MHz, 1.71-2.69 GHz, 3.3-4.2 GHz and 4.4-5.0MHz
- type: rod, swivel
- cable type: no cable
- connectors: 1 x SMA M*
- polarization: linear
- gain: max. 5.5dBi
- return loss: < -5 dB
- operating temperatures: -40 +85 Celsius
- humidity: 0% - 100%
- mounting type: connector


Together with SMA-SMA coaxial cable extender, as ITBP-0020, ITBP-0021 0r ITBP-0023, this 5G LTE antenna can be installed outdoor.

* compatible accesory.
Available in stock.
Add to cart To checkout




13,80 Euro

coaxial cable 5m, connectors SMA F and SMA M, for GSM, 3G, 4G/LTE, 5G, GPS, WIFI or LORA antennas
SKU: ITBP-0021 [P/N ITBP-EXT-ANT-5M-1#001]


Specifications:
-frequencies: 30~2400MHz
-connector a: SMA female
-connector b: SMA male
-RF gain/100MHz: -0.3dBpm;
-RF gain/100MHz: -0.3dBpm;
-RF gain/440MHz: -0.8dBpm;
-RF gain/1000MHz: -0.9dBpm;
-RF gain/2400MHz: -2.4dBpm;
-cable type: RG174
-cable length: 5m
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%

* compatible accesory.
Available in stock.
Add to cart To checkout




11,95 Euro

High performance 4G (LTE), 3G, 2G (GSM) external antenna, 5 m cable, SMA, 5dBi gain, magnetic mounting
SKU: ITBP-0016 [P/N ITBP-GSM-ANT-5dBi-2#001]


Specifications:
-frequencies: 824~960 / 1710~2170MHz
-RF gain: 5dBi
-V.S.W.R: <2
-polarization: linear
-cable type: RG174
-cable length: 5m
-connectors: 1 x SMA (male/regular)
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%
-mounting type: magnetic

* compatible accesory.
Available in stock.
Add to cart To checkout




9,95 Euro

High performance 4G (LTE), 3G, 2G (GSM) external antenna, 3 m cable, SMA, 5dBi gain, magnetic mounting
SKU: ITBP-0014 [P/N ITBP-GSM-ANT-5dBi-1#001]


Specifications:
-frequencies: 824~960 / 1710~2170MHz
-RF gain: 5dBi
-V.S.W.R: <2
-polarization: linear
-cable type: RG174
-cable length: 3m
-connectors: 1 x SMA (male/regular)
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%
-mounting type: magnetic

* compatible accesory.
Available in stock.
Add to cart To checkout




8,95 Euro

LTE 3G GSM flat antenna, 2dB, SMA, 3m cable
SKU: ITBP-0013 [P/N ITBP-GSM-ANT-SMA-FLAT02#001]

LTE/3G/GSM antenna, 824 – 2170MHz, 2dB gain, sticker mounting type, 3m RG174 cable, SMA connector

* compatible accesory.
Available in stock.
Add to cart To checkout




6,98 Euro

Professional multi-band LTE antenna, 2 dBi, rod type, SMA, swivel, no cable
SKU: ITBP-0022 [P/N ITBP-LTE-ANT-SMAM#001]


Main specifications
- frequencies: 700-960 MHz and 1710-2690MHz
- type: rod, swivel
- cable type: no cable
- connectors: 1 x SMA M*
- polarization: linear
- gain: 2dBi
- V.S.W.R: ~2
- operating temperatures: -40 +85 Celsius
- humidity: 0% - 100%
- mounting type: connector


Together with SMA-SMA coaxial cable extender, as ITBP-0020, ITBP-0021 or ITBP-0023, this LTE antenna can be installed outdoor.

* compatible accesory.
Available in stock.
Add to cart To checkout












a-gsmII shield [2G, integrated antenna, dual SIM, uFL external antenna connector, USB, SD, Arduino full size shield, Raspberry PI, BeagleBone, Arduino and Teensy compatible]

a-gsmII shield - 2G, integrated antenna, dual SIM, uFL external antenna connector, USB, SD, Arduino full size shield - compatible with Raspberry PI, BeagleBone, Arduino and Teensy

a-gsmII shield [2G, integrated antenna, dual SIM, uFL external antenna connector, USB, SD, Arduino full size shield, Raspberry PI, BeagleBone, Arduino and Teensy compatible]

29,99 Euro

a-gsm II v2.105 by itbrainpower.net - Dual SIM, integrated antenna, quad band GSM shield for ARDUINO, BBB & RASPBERRY PI
SKU: ITBP-1010 [P/N AGSM2105#BAP]

- quad band GSM/GPRS/DTMF - 850/950/1800/1900 MHz [worldwide coverage],
- integrated GSM antenna and u.FL socket for external antenna,
- DUAL SIM socket (placed on the top side of the shield),
- USB (WIN/LINUX/MAC, RPI/BBB [Debian] support [USB mini type B]
- UART [TX, RX], POWER ON/OFF, MODEM STATUS and MODEM RESET 2.8V up to 5V compliant interfaces,
- micro SD slot (supporting micro TF cards up to 32Gb),
- high performance switching power supply [5 powering modes available],
- 2 x standard 3.5mm stereo jacks for high power output (870mW) audio and for capacitor microphone input
- other electrical interfaces, including SERIAL2,
- 84.00x53.34mm standard ARDUINO form factor.

Plug and replace [compatible with] the original Arduino GSM/Arduino GSM V2, in (almost) all projects using the ITBP Arduino GSM hack class [free download on https://itbrainpower.net/downloads]

RaspberryPI, BeagleBone, Arduino and Teensy families hardware compatible. C and Python software libraries and examples support.

* bundled with Arduino headers
Available in stock.

Add to cart To checkout




27,99 Euro

a-gsm II v2.105 by itbrainpower.net - Dual SIM, integrated antenna, quad band GSM shield for ARDUINO, BBB & RASPBERRY PI
SKU: ITBP-1011 [P/N AGSM2105#0AP]

- quad band GSM/GPRS/DTMF - 850/950/1800/1900 MHz [worldwide coverage],
- integrated GSM antenna and u.FL socket for external antenna,
- DUAL SIM socket (placed on the top side of the shield),
- USB (WIN/LINUX/MAC, RPI/BBB [Debian] support [USB mini type B]
- UART [TX, RX], POWER ON/OFF, MODEM STATUS and MODEM RESET 2.8V up to 5V compliant interfaces,
- micro SD slot (supporting micro TF cards up to 32Gb),
- high performance switching power supply [5 powering modes available],
- 2 x standard 3.5mm stereo jacks for high power output (870mW) audio and for capacitor microphone input
- other electrical interfaces, including SERIAL2,
- 84.00x53.34mm standard ARDUINO form factor.

Plug and replace [compatible with] the original Arduino GSM/Arduino GSM V2, in (almost) all projects using the ITBP Arduino GSM hack class [free download on https://itbrainpower.net/downloads]

RaspberryPI, BeagleBone, Arduino and Teensy families hardware compatible. C and Python software libraries and examples support.

* no Arduino headers included
Available in stock.

Add to cart To checkout












b-gsmgnss shield [2G modem + GNSS(GPS+GLONASS) + BTH 3.0, integrated GSM antenna, dual SIM, uFL external antenna connectors, USB, SD, Arduino full size shield, Raspberry PI, BeagleBone, Arduino and Teensy compatible]

b-gsmgnss shield - 2G modem + GNSS(GPS+GLONASS) + BTH 3.0, integrated antenna, dual SIM, uFL external antenna connectors, USB, SD, Arduino full size shield - compatible with Raspberry PI, BeagleBone, Arduino and Teensy

b-gsmgnss shield [2G modem + GNSS(GPS+GLONASS) + BTH 3.0, integrated GSM antenna, dual SIM, uFL external antenna connectors, USB, SD, Arduino full size shield, Raspberry PI, BeagleBone, Arduino and Teensy compatible]

35,99 Euro

b-gsmgnss II v2.105 by itbrainpower.net - Dual SIM, integrated antenna GSM + GNSS[GPS+GLONASS] + BTH 3.0 shield
SKU: ITBP-1012 [P/N BGSMGNSS2105#BAP]

- quad band GSM/GPRS/DTMF - 850/950/1800/1900 MHz [worldwide coverage],
- integrated GSM antenna and u.FL socket for external antenna,
- high accuracy GNSS [GPS+GLONASS] engine,
- Bluetooth 3.0 interface (SPP and HFP profile support),
- DUAL SIM socket (placed on the top side of the shield),
- USB (WIN/LINUX/MAC, RPI/BBB [Debian] support [USB mini type B]
- UART [TX, RX], POWER ON/OFF, MODEM STATUS and MODEM RESET 2.8V up to 5V compliant interfaces,
- micro SD slot (supporting micro TF cards up to 32Gb),
- high performance switching power supply [5 powering modes available],
- 2 x standard 3.5mm stereo jacks for high power output (800mW) audio and for capacitor microphone input
- other electrical interfaces, including SERIAL2,
- 84.00x53.34mm standard ARDUINO form factor.

Plug and replace [compatible with] the original Arduino GSM/Arduino GSM V2, in (almost) all projects using the ITBP Arduino GSM hack class [free download on https://itbrainpower.net/downloads]

RaspberryPI, BeagleBone, Arduino and Teensy families hardware compatible. C and Python software libraries and examples support.

* bundled with Arduino headers
Available in stock.

Add to cart To checkout




33,99 Euro

b-gsmgnss II v2.105 by itbrainpower.net - Dual SIM, integrated antenna GSM + GNSS[GPS+GLONASS] + BTH 3.0 shield
SKU: ITBP-1013 [P/N BGSMGNSS2105#0AP]

- quad band GSM/GPRS/DTMF - 850/950/1800/1900 MHz [worldwide coverage],
- integrated GSM antenna and u.FL socket for external antenna,
- high accuracy GNSS [GPS+GLONASS] engine,
- Bluetooth 3.0 interface (SPP and HFP profile support),
- DUAL SIM socket (placed on the top side of the shield),
- USB (WIN/LINUX/MAC, RPI/BBB [Debian] support [USB mini type B]
- UART [TX, RX], POWER ON/OFF, MODEM STATUS and MODEM RESET 2.8V up to 5V compliant interfaces,
- micro SD slot (supporting micro TF cards up to 32Gb),
- high performance switching power supply [5 powering modes available],
- 2 x standard 3.5mm stereo jacks for high power output (800mW) audio and for capacitor microphone input
- other electrical interfaces, including SERIAL2,
- 84.00x53.34mm standard ARDUINO form factor.

Plug and replace [compatible with] the original Arduino GSM/Arduino GSM V2, in (almost) all projects using the ITBP Arduino GSM hack class [free download on https://itbrainpower.net/downloads]

RaspberryPI, BeagleBone, Arduino and Teensy families hardware compatible. C and Python software libraries and examples support.

* no Arduino headers included
Available in stock.

Add to cart To checkout












c-uGSM shield [2G, dual SIM, Arduino mini shield, Raspberry PI compatible, USB integrated]

c-uGSM GSM shield top side   c-uGSM shield bottom side

c-uGSM shield [2G, dual SIM, Arduino mini shield, Raspberry PI compatible, USB integrated]


2G modular modems - check also for new u-GSM shield, PN: UGSM219-M95FA#UFL here.


27,99 Euro

c-uGSM board v1.13 by itbrainpower.net - Arduino & RPI DUAL SIM GSM micro shield
SKU: ITBP-2001 [P/N CUGSM113#UFL]

worldwide quad band GSM - equipped with u.FL connector
* Raspberry PI / PIB+ / PI2 / ZERO & PI3 and Arduino compatible, with code samples.
* micro USB type A -TTL 2 USB bridge(CP210x) adapter. can be used for powering.
* DUAL SIM(standard), single SIM active
* 3-5V auto-level interfaces (UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS)
* integrated LiPol charger
* analog audio interface (output-700 mW RMS, in- capacitor MIC)
*1.25"x1.57"(31.75x39.88mm)
* optional external(20.3x34.29mm) pin to pin plugable 5-25V switching power supply
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering interface 99% pin 2 pin compatible with d-u3G series
* probably the most compact GSM module board on market

Available in stock.

Add to cart To checkout




29,99 Euro

c-uGSM board v1.13 by itbrainpower.net - Arduino & RPI DUAL SIM GSM micro shield
SKU: ITBP-2002 [P/N CUGSM113#SMA]

worldwide quad band GSM - equipped with SMA connector
* Raspberry PI / PIB+ / PI2 / ZERO & PI3 and Arduino compatible, with code samples.
* micro USB type A -TTL 2 USB bridge(CP210x) adapter. can be used for powering.
* DUAL SIM(standard), single SIM active
* 3-5V auto-level interfaces (UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS)
* integrated LiPol charger
* analog audio interface (output-700 mW RMS, in- capacitor MIC)
*1.25"x1.57"(31.75x39.88mm)
* optional external(20.3x34.29mm) pin to pin plugable 5-V switching power supply
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering interface 99% pin 2 pin compatible with d-u3G series
* probably the most compact GSM module board on the market

Available in stock.

Add to cart To checkout




Bellow, compatible accesories:


4,95 Euro

super capacitor for itbrainpower modular modems
P/N SCAP1F5V#001

super capacitor 1F, 5V, ESR 150 mOhm
* compatible accesory.
Available in stock.

Add to cart To checkout




7,25 Euro

g-SPS 4V adapter board v1.02 by itbrainpower.net
SKU: ITBP-0001 [P/N gSPS102#4V(DDRV)]

itbrainpower.net modular modem pin to pin compatible
* external plugable 5-19V input, 4V output, max 2A, switching power supply. 20.3x34.29mm
* input powering selector: itbrainpower.net modular modem USB or external sources
* disable (deep sleep) input pin
* for itbrainpower.net modular modems board usage without LiPOL
* UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS intefaces pass trough
* compatible accesory.
Available in stock.

Add to cart To checkout




6,95 Euro

g-SPS 5V adapter board v1.02 by itbrainpower.net
SKU: ITBP-0002 [P/N gSPS102#5V(LiPOL)]

itbrainpower.net modular modem pin to pin compatible
* external plugable 6-19V input, 5V output, max 2A, switching power supply
* disable (deep sleep) input pin
* for itbrainpower.net modular modem boards with LiPOL usage
* UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS intefaces pass trough
* compatible accesory.
Available in stock.

Add to cart To checkout




2,95 Euro

f-audioOutputs v1.02 by itbrainpower.net
P/N fAUDIO102B


c-uGSM and h-nanoGSM compatible accessory
* 2 x audio sockets bundle extender board
* for standard PC headset (speaker+microphone) connection
* the package contains 3.5mm stereo jack socket 2pcs. and audio PCB extender board
* NEW PRODUCT!
* compatible accesory.
Available in stock.

Add to cart To checkout




2,76 Euro

i-hatGSM3G v1.01 by itbrainpower.net
P/N i-hatGSM3G101B

itbrainpower.net modular modems compatible
* Raspberry PI HAT adapter board
* Raspberry PI B+, Raspberry PI 2, Raspberry PI ZERO and Raspberry PI 3 compatible
* compatible with all itbrainpower.net modular modem shields, chained or not with g-SPS 4V/5V switching power supply boards
* used in chain with g-SPS 5V version [LiPOL] can be used to power any flavor of Raspberry PI boards (including Raspberry PI 3)
* compatible with other Linux ARM boards having the PIO connector compatible with PRi (Eg. BananaPI, BeagleBone,...)
* the bundle contains: 2.54 mm(0.1") 2x10 pin-header socket 1pcs., 2.54 mm(0.1") 1x10 pin-header socket 1pcs. and i-hatGSM3G RPi HAT adapter board 1pcs.
* compatible accesory.
Available in stock.

Add to cart To checkout




2,38 Euro

j-328GSM3GLader v1.02 by itbrainpower.net
P/N j328GSM3GLader102B


itbrainpower.net modular modems compatible
* Arduino Micro / Mini / Nano like adapter board
* compatible with Arduino Micro, Arduino Nano USB, ArduinoPro Mini, Atmega32U4 based Fio board, a-star mini(no GND connection), Arduino Yun Mini, Metro Mini 328(no GND connection), Pro Trinket(no GND connection), RedStick, other mini-boards
* can be interfaced even with ARDUINO UNO!
* itbrainpower.net modular modem shields compatible chained or not with g-SPS 4V/5V switching power supply boards
* the bundle contains: 2.54 mm(0.1") 1x10 pin-header socket 1pcs., 2.54 mm(0.1") 1x8 pin-header socket 1pcs. and j-328GSM3GLader Arduino Micro adapter board 1pcs.
* compatible accesory.
Available in stock.

Add to cart To checkout




0,65 Euro

Lithium Polymer battery connector
SKU: ITBP-0006 [P/N ITBP-LiPOL-CON#TP01]


* compatible accesory.
Available in stock.

Add to cart To checkout




3,15 Euro

u.FL to SMA female panel 75mm pigtail
SKU: ITBP-0007 [P/N ITBP-UFL-SMAF#075]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 75mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




3,75 Euro

u.FL to SMA female panel 100mm pigtail
SKU: ITBP-0008 [P/N ITBP-UFL-SMAF#100]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 100mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,29 Euro

u.FL to SMA female panel 150mm pigtail
SKU: ITBP-0009 [P/N ITBP-UFL-SMAF#150]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 150mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,75 Euro

u.FL to SMA female panel 200mm pigtail
SKU: ITBP-0011 [P/N ITBP-UFL-SMAF#200]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 200mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




3,75 Euro

u.FL to RP-SMA female panel 100mm pigtail
SKU: ITBP-0017 [P/N ITBP-UFL-RPSMAF#100]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 100mm
- connectors: 1 x uFL (IPEX) + 1 x RP-SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,75 Euro

u.FL to RP-SMA female panel 200mm pigtail
SKU: ITBP-0018 [P/N ITBP-UFL-RPSMAF#200]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 200mm
- connectors: 1 x uFL (IPEX) + 1 x RP-SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




13,80 Euro

coaxial cable 5m, connectors SMA F and SMA M, for GSM, 3G, 4G/LTE, 5G, GPS, WIFI or LORA antennas
SKU: ITBP-0021 [P/N ITBP-EXT-ANT-5M-1#001]


Specifications:
-frequencies: 30~2400MHz
-connector a: SMA female
-connector b: SMA male
-RF gain/100MHz: -0.3dBpm;
-RF gain/100MHz: -0.3dBpm;
-RF gain/440MHz: -0.8dBpm;
-RF gain/1000MHz: -0.9dBpm;
-RF gain/2400MHz: -2.4dBpm;
-cable type: RG174
-cable length: 5m
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%

* compatible accesory.
Available in stock.

Add to cart To checkout




23,80 Euro

coaxial cable 10m, connectors SMA F and SMA M, for GSM, 3G, 4G/LTE, 5G, GPS, WIFI or LORA antennas
SKU: ITBP-0020 [P/N ITBP-EXT-ANT-10M-1#001]


Specifications:
-frequencies: 30~2400MHz
-connector a: SMA female
-connector b: SMA male
-RF gain/100MHz: -0.3dBpm;
-RF gain/100MHz: -0.3dBpm;
-RF gain/440MHz: -0.8dBpm;
-RF gain/1000MHz: -0.9dBpm;
-RF gain/2400MHz: -2.4dBpm;
-cable type: RG174
-cable length: 10m
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%

* compatible accesory.
Available in stock.

Add to cart To checkout




3,15 Euro

embedded antenna 850Mhz->2250Mhz w. u.FL 100mm cable
SKU: ITBP-0010 [P/N ITBP-EMB2-UFL#100]

Embedded 4G (LTE), 3G, 2G (GSM) antenna, 850Mhz->2250Mhz, 10 cm cable, uFL, 2dBi gain, adhesive mounting
* compatible accesory.
Available in stock.

Add to cart To checkout




11,95 Euro

High performance 4G (LTE), 3G, 2G (GSM) external antenna, 5 m cable, SMA, 5dBi gain, magnetic mounting
SKU: ITBP-0016 [P/N ITBP-GSM-ANT-5dBi-2#001]


Specifications:
-frequencies: 824~960 / 1710~2170MHz
-RF gain: 5dBi
-V.S.W.R: <2
-polarization: linear
-cable type: RG174
-cable length: 5m
-connectors: 1 x SMA (male/regular)
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%
-mounting type: magnetic

* compatible accesory.
Available in stock.

Add to cart To checkout




9,95 Euro

High performance 4G (LTE), 3G, 2G (GSM) external antenna, 3 m cable, SMA, 5dBi gain, magnetic mounting
SKU: ITBP-0014 [P/N ITBP-GSM-ANT-5dBi-1#001]


Specifications:
-frequencies: 824~960 / 1710~2170MHz
-RF gain: 5dBi
-V.S.W.R: <2
-polarization: linear
-cable type: RG174
-cable length: 3m
-connectors: 1 x SMA (male/regular)
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%
-mounting type: magnetic

* compatible accesory.
Available in stock.

Add to cart To checkout




8,95 Euro

LTE 3G GSM flat antenna, 2dB, SMA, 3m cable
SKU: ITBP-0013 [P/N ITBP-GSM-ANT-SMA-FLAT02#001]

LTE/3G/GSM antenna, 824 – 2170MHz, 2dB gain, sticker mounting type, 3m RG174 cable, SMA connector

* compatible accesory.
Available in stock.

Add to cart To checkout




19,90 Euro

Professional multi-band 5G LTE antenna, 5.5 dBi, rod type, SMA, swivel, no cable
SKU: ITBP-0019 [P/N ITBP-5G-ANT-SMAM#001]


Main specifications
- frequencies: 698-960 MHz, 1.71-2.69 GHz, 3.3-4.2 GHz and 4.4-5.0MHz
- type: rod, swivel
- cable type: no cable
- connectors: 1 x SMA M*
- polarization: linear
- gain: max. 5.5dBi
- return loss: < -5 dB
- operating temperatures: -40 +85 Celsius
- humidity: 0% - 100%
- mounting type: connector


Together with SMA-SMA coaxial cable extender, as ITBP-0020, ITBP-0021 0r ITBP-0023, this 5G LTE antenna can be installed outdoor.

* compatible accesory.
Available in stock.

Add to cart To checkout




6,98 Euro

Professional multi-band LTE antenna, 2 dBi, rod type, SMA, swivel, no cable
SKU: ITBP-0022 [P/N ITBP-LTE-ANT-SMAM#001]


Main specifications
- frequencies: 700-960 MHz and 1710-2690MHz
- type: rod, swivel
- cable type: no cable
- connectors: 1 x SMA M*
- polarization: linear
- gain: 2dBi
- V.S.W.R: ~2
- operating temperatures: -40 +85 Celsius
- humidity: 0% - 100%
- mounting type: connector


Together with SMA-SMA coaxial cable extender, as ITBP-0020, ITBP-0021 or ITBP-0023, this LTE antenna can be installed outdoor.

* compatible accesory.
Available in stock.

Add to cart To checkout




4,95 Euro

GSM Antenna SMA 90 degree
SKU: ITBP-0012 [P/N ITBP-GSM-ANT-SMA90D#001]

LTE/3G/GSM antenna, 850/900/1800/1900 MHz, 2dB gain, no cable, right angle SMA connector
* compatible accesory.
Available in stock.

Add to cart To checkout












l-LTE shield [4G, 3G and GSM modem + GNSS(GPS + GLONASS) modular shield, Arduino,  BeagleBone and Raspberry PI compatible, USA/NorthAmerican and European/ROW versions, USB integrated]

l-LTE 4G/3G/GSM modem + GNSS shield top side   l-LTE 4G/3G/GSM modem + GNSS shield bottom side

l-LTE shield [4G, 3G and GSM modem + GNSS(GPS + GLONASS) modular shield, Arduino,  BeagleBone and Raspberry PI compatible, USA/NorthAmerican and European/ROW versions, USB integrated]


LTE modems European - you may like to order
* new u-GSM shield LTE CAT4, PN: UGSM219-EG95E#UFL here
* new u-GSM shield LTE CAT1, PN: UGSM219-EG91E#UFL here
SMA options are available, too.



124,95 Euro

l-LTE shield v1.07 by itbrainpower.net - Arduino, BeagleBone & RPI 4G/LTE CAT4 modular modem shield
P/N LLTE107-CAT4#UFL-EUR

European 4G, 3G and GSM, high speed LTE[4G] CAT4 compliant modular modem - equipped with uFL connector, bundled with high performance GNSS [GPS+GLONASS] engine.
* 4G/LTE speeds up to: FDD LTE - Max 150Mbps (DL) Max 50Mbps (UL) / TDD LTE Max 130Mbps (DL) Max 35Mbps (UL).
* supported radio bands: FDD LTE B1/B3/B5/B7/B8/B20, TDD LTE B38/B40/B41, WCDMA B1/B5/B8 and GSM B3/B8
* 3GPP E-UTRA Release 11 compliant
* high performances GNSS engine embedded with parallel GPS and Glonass satellites interpolation for best accuracy and signal sensitivity. Supports active and passive GNSS antennas.
* Raspberry PI / PIB+ / PI2 / ZERO & PI3, BeagleBone and Arduino compatible, with code samples.
* mini USB type B -SERIAL UART adapter. Can be used for powering, also.
* 3-5V auto-level digital interfaces (UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS / SLEEP)
* integrated Lithium Polymer charger
* digital audio interface
* one 4G STANDARD SIZE SIM socket
* super compact: 1.35"x1.93" (34.29 x 49.02mm)
* optional external(20.3x34.29mm) pin to pin plugable 5-25V switching power supply
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]
* the first and the most compact 4G modular shield in his market class



Out of stock. More info - contact us.

To checkout




109,89 Euro
49,99 Euro

l-LTE shield v1.07 by itbrainpower.net - Arduino, BeagleBone & RPI 4G/LTE CAT1 modular modem shield
SKU: ITBP-2010 [P/N LLTE107-CAT1#UFL-EUR]

European 4G, 3G and GSM, IoT/M2M-optimized LTE[4G] CAT1 compliant modular modem - equipped with uFL connector, bundled with high performance GNSS [GPS+GLONASS] engine.
* 4G/LTE speeds up to: FDD LTE - LTE-FDD Max 10Mbps (DL) Max 5Mbps (UL).
* 3GPP E-UTRA Release 11 compliant
* supported radio bands: FDD LTE B1/B3/B5/B7/B8/B20, WCDMA B1/B5/B8 and GSM B3/B8
* high performances GNSS engine embedded with parallel GPS and Glonass satellites interpolation for best accuracy and signal sensitivity. Supports active and passive GNSS antennas.
* Raspberry PI / PIB+ / PI2 / ZERO & PI3, BeagleBone and Arduino compatible, with code samples.
* mini USB type B -SERIAL UART adapter. Can be used for powering, also.
* 3-5V auto-level digital interfaces (UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS / SLEEP)
* integrated Lithium Polymer charger
* digital audio interface
* one 4G STANDARD SIZE SIM socket
* super compact: 1.35"x1.93" (34.29 x 49.02mm)
* optional external(20.3x34.29mm) pin to pin plugable 5-25V switching power supply
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]
* the first and the most compact 4G modular shield in his market class

Available in stock.

Add to cart To checkout




127,45 Euro

l-LTE shield v1.07 by itbrainpower.net - Arduino, BeagleBone & RPI 4G/LTE CAT4 modular modem shield
P/N LLTE107-CAT4#SMA-EUR

European 4G, 3G and GSM, high speed LTE[4G] CAT4 compliant modular modem - equipped with SMA connector, bundled with high performance GNSS [GPS+GLONASS] engine.
* 4G/LTE speeds up to: FDD LTE - Max 150Mbps (DL) Max 50Mbps (UL) / TDD LTE Max 130Mbps (DL) Max 35Mbps (UL).
* supported radio bands: FDD LTE B1/B3/B5/B7/B8/B20, TDD LTE B38/B40/B41, WCDMA B1/B5/B8 and GSM B3/B8
* 3GPP E-UTRA Release 11 compliant
* high performances GNSS engine embedded with parallel GPS and Glonass satellites interpolation for best accuracy and signal sensitivity. Supports active and passive GNSS antennas.
* Raspberry PI / PIB+ / PI2 / ZERO & PI3, BeagleBone and Arduino compatible, with code samples.
* mini USB type B -SERIAL UART adapter. Can be used for powering, also.
* 3-5V auto-level digital interfaces (UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS / SLEEP)

* integrated Lithium Polymer charger
* digital audio interface
* one 4G STANDARD SIZE SIM socket
* super compact: 1.35"x1.93" (34.29 x 49.02mm)
* optional external(20.3x34.29mm) pin to pin plugable 5-25V switching power supply
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]
* the first and the most compact 4G modular shield in his market class



Out of stock. More info - contact us.

To checkout




112,39 Euro
50,99 Euro

l-LTE shield v1.07 by itbrainpower.net - Arduino, BeagleBone & RPI 4G/LTE CAT1 modular modem shield
SKU: ITBP-2011 [P/N LLTE107-CAT1#SMA-EUR]

European 4G, 3G and GSM, IoT/M2M-optimized LTE[4G] CAT1 compliant modular modem - equipped with SMA connector, bundled with high performance GNSS [GPS+GLONASS] engine.
* 4G/LTE speeds up to: FDD LTE - LTE-FDD Max 10Mbps (DL) Max 5Mbps (UL).
* 3GPP E-UTRA Release 11 compliant
* supported radio bands: FDD LTE B1/B3/B5/B7/B8/B20, WCDMA B1/B5/B8 and GSM B3/B8
* high performances GNSS engine embedded with parallel GPS and Glonass satellites interpolation for best accuracy and signal sensitivity. Supports active and passive GNSS antennas.
* Raspberry PI / PIB+ / PI2 / ZERO & PI3, BeagleBone and Arduino compatible, with code samples.
* mini USB type B -SERIAL UART adapter. Can be used for powering, also.
* 3-5V auto-level digital interfaces (UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS / SLEEP)

* integrated Lithium Polymer charger
* digital audio interface
* one 4G STANDARD SIZE SIM socket
* super compact: 1.35"x1.93" (34.29 x 49.02mm)
* optional external(20.3x34.29mm) pin to pin plugable 5-25V switching power supply
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]
* the first and the most compact 4G modular shield in his market class

Available in stock.

Add to cart To checkout




124,95 Euro

l-LTE shield v1.07 by itbrainpower.net - Arduino, BeagleBone & RPI 4G/LTE CAT4 modular modem shield
P/N LLTE107-CAT4#UFL-NA

North American 4G and 3G, high speed LTE[4G] CAT4 compliant modular modem - equipped with uFL connector, bundled with high performance GNSS [GPS+GLONASS] engine.
* 4G/LTE speeds up to: FDD LTE - Max 150Mbps (DL) Max 50Mbps (UL).
* supported radio bands: FDD LTE B2/B4/B12 and WCDMA B2/B4/B5
* 3GPP E-UTRA Release 11 compliant
* high performances GNSS engine embedded with parallel GPS and Glonass satellites interpolation for best accuracy and signal sensitivity. Supports active and passive GNSS antennas.
* Raspberry PI / PIB+ / PI2 / ZERO & PI3, BeagleBone and Arduino compatible, with code samples.
* mini USB type B -SERIAL UART adapter. Can be used for powering, also.
* 3-5V auto-level digital interfaces (UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS / SLEEP)
* integrated Lithium Polymer charger
* digital audio interface
* one 4G STANDARD SIZE SIM socket
* super compact: 1.35"x1.93" (34.29 x 49.02mm)
* optional external(20.3x34.29mm) pin to pin plugable 5-25V switching power supply
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]
* the first and the most compact 4G modular shield in his market class



Out of stock. More info - contact us.

To checkout




109,89 Euro
50,99 Euro

l-LTE shield v1.07 by itbrainpower.net - Arduino, BeagleBone & RPI 4G/LTE CAT1 modular modem shield
SKU: ITBP-2014 [P/N LLTE107-CAT1#UFL-NA]

North American 4G and 3G, IoT/M2M-optimized LTE[4G] CAT1 compliant modular modem - equipped with uFL connector, bundled with high performance GNSS [GPS+GLONASS] engine.
* 4G/LTE speeds up to: FDD LTE - LTE-FDD Max 10Mbps (DL) Max 5Mbps (UL).
* 3GPP E-UTRA Release 11 compliant
* supported radio bands: FDD LTE B2/B4/B12 and WCDMA B2/B4/B5
* high performances GNSS engine embedded with parallel GPS and Glonass satellites interpolation for best accuracy and signal sensitivity. Supports active and passive GNSS antennas.
* Raspberry PI / PIB+ / PI2 / ZERO & PI3, BeagleBone and Arduino compatible, with code samples.
* mini USB type B -SERIAL UART adapter. Can be used for powering, also.
* 3-5V auto-level digital interfaces (UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS / SLEEP)
* integrated Lithium Polymer charger
* digital audio interface
* one 4G STANDARD SIZE SIM socket
* super compact: 1.35"x1.93" (34.29 x 49.02mm)
* optional external(20.3x34.29mm) pin to pin plugable 5-25V switching power supply
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]
* the first and the most compact 4G modular shield in his market class

Available in stock.

Add to cart To checkout




127,45 Euro

l-LTE shield v1.07 by itbrainpower.net - Arduino, BeagleBone & RPI 4G/LTE CAT4 modular modem shield
P/N LLTE107-CAT4#SMA-NA

North American 4G and 3G, high speed LTE[4G] CAT4 compliant modular modem - equipped with SMA connector, bundled with high performance GNSS [GPS+GLONASS] engine.
* 4G/LTE speeds up to: FDD LTE - Max 150Mbps (DL) Max 50Mbps (UL).
* supported radio bands: FDD LTE B2/B4/B12 and WCDMA B2/B4/B5
* 3GPP E-UTRA Release 11 compliant
* high performances GNSS engine embedded with parallel GPS and Glonass satellites interpolation for best accuracy and signal sensitivity. Supports active and passive GNSS antennas.
* Raspberry PI / PIB+ / PI2 / ZERO & PI3, BeagleBone and Arduino compatible, with code samples.
* mini USB type B -SERIAL UART adapter. Can be used for powering, also.
* 3-5V auto-level digital interfaces (UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS / SLEEP)
* integrated Lithium Polymer charger
* digital audio interface
* one 4G STANDARD SIZE SIM socket
* super compact: 1.35"x1.93" (34.29 x 49.02mm)
* optional external(20.3x34.29mm) pin to pin plugable 5-25V switching power supply
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]
* the first and the most compact 4G modular shield in his market class



Out of stock. More info - contact us.

To checkout




112,39 Euro
51,99 Euro

l-LTE shield v1.07 by itbrainpower.net - Arduino, BeagleBone & RPI 4G/LTE CAT1 modular modem shield
SKU: ITBP-2015 [P/N LLTE107-CAT1#SMA-NA]

North American 4G and 3G, IoT/M2M-optimized LTE[4G] CAT1 compliant modular modem - equipped with SMA connector, bundled with high performance GNSS [GPS+GLONASS] engine.
* 4G/LTE speeds up to: FDD LTE - LTE-FDD Max 10Mbps (DL) Max 5Mbps (UL).
* 3GPP E-UTRA Release 11 compliant
* supported radio bands: FDD LTE B2/B4/B12 and WCDMA B2/B4/B5
* high performances GNSS engine embedded with parallel GPS and Glonass satellites interpolation for best accuracy and signal sensitivity. Supports active and passive GNSS antennas.
* Raspberry PI / PIB+ / PI2 / ZERO & PI3, BeagleBone and Arduino compatible, with code samples.
* mini USB type B -SERIAL UART adapter. Can be used for powering, also.
* 3-5V auto-level digital interfaces (UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS / SLEEP)
* integrated Lithium Polymer charger
* digital audio interface
* one 4G STANDARD SIZE SIM socket
* super compact: 1.35"x1.93" (34.29 x 49.02mm)
* optional external(20.3x34.29mm) pin to pin plugable 5-25V switching power supply
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]
* the first and the most compact 4G modular shield in his market class

Available in stock.

Add to cart To checkout




Bellow, compatible accesories:


4,95 Euro

super capacitor for itbrainpower modular modems
P/N SCAP1F5V#001

super capacitor 1F, 5V, ESR 150 mOhm
* compatible accesory.
Available in stock.

Add to cart To checkout




7,25 Euro

g-SPS 4V adapter board v1.02 by itbrainpower.net
SKU: ITBP-0001 [P/N gSPS102#4V(DDRV)]

itbrainpower.net modular modem pin to pin compatible
* external plugable 5-19V input, 4V output, max 2A, switching power supply. 20.3x34.29mm
* input powering selector: itbrainpower.net modular modem USB or external sources
* disable (deep sleep) input pin
* for itbrainpower.net modular modems board usage without LiPOL
* UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS intefaces pass trough
* compatible accesory.
Available in stock.

Add to cart To checkout




6,95 Euro

g-SPS 5V adapter board v1.02 by itbrainpower.net
SKU: ITBP-0002 [P/N gSPS102#5V(LiPOL)]

itbrainpower.net modular modem pin to pin compatible
* external plugable 6-19V input, 5V output, max 2A, switching power supply
* disable (deep sleep) input pin
* for itbrainpower.net modular modem boards with LiPOL usage
* UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS intefaces pass trough
* compatible accesory.
Available in stock.

Add to cart To checkout




2,76 Euro

i-hatGSM3G v1.01 by itbrainpower.net
P/N i-hatGSM3G101B

itbrainpower.net modular modems compatible
* Raspberry PI HAT adapter board
* Raspberry PI B+, Raspberry PI 2, Raspberry PI ZERO and Raspberry PI 3 compatible
* compatible with all itbrainpower.net modular modem shields, chained or not with g-SPS 4V/5V switching power supply boards
* used in chain with g-SPS 5V version [LiPOL] can be used to power any flavor of Raspberry PI boards (including Raspberry PI 3)
* compatible with other Linux ARM boards having the PIO connector compatible with PRi (Eg. BananaPI, BeagleBone,...)
* the bundle contains: 2.54 mm(0.1") 2x10 pin-header socket 1pcs., 2.54 mm(0.1") 1x10 pin-header socket 1pcs. and i-hatGSM3G RPi HAT adapter board 1pcs.
* compatible accesory.
Available in stock.

Add to cart To checkout




2,38 Euro

j-328GSM3GLader v1.02 by itbrainpower.net
P/N j328GSM3GLader102B


itbrainpower.net modular modems compatible
* Arduino Micro / Mini / Nano like adapter board
* compatible with Arduino Micro, Arduino Nano USB, ArduinoPro Mini, Atmega32U4 based Fio board, a-star mini(no GND connection), Arduino Yun Mini, Metro Mini 328(no GND connection), Pro Trinket(no GND connection), RedStick, other mini-boards
* can be interfaced even with ARDUINO UNO!
* itbrainpower.net modular modem shields compatible chained or not with g-SPS 4V/5V switching power supply boards
* the bundle contains: 2.54 mm(0.1") 1x10 pin-header socket 1pcs., 2.54 mm(0.1") 1x8 pin-header socket 1pcs. and j-328GSM3GLader Arduino Micro adapter board 1pcs.
* compatible accesory.
Available in stock.

Add to cart To checkout




0,65 Euro

Lithium Polymer battery connector
SKU: ITBP-0006 [P/N ITBP-LiPOL-CON#TP01]


* compatible accesory.
Available in stock.

Add to cart To checkout




3,15 Euro

u.FL to SMA female panel 75mm pigtail
SKU: ITBP-0007 [P/N ITBP-UFL-SMAF#075]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 75mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




3,75 Euro

u.FL to SMA female panel 100mm pigtail
SKU: ITBP-0008 [P/N ITBP-UFL-SMAF#100]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 100mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,29 Euro

u.FL to SMA female panel 150mm pigtail
SKU: ITBP-0009 [P/N ITBP-UFL-SMAF#150]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 150mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,75 Euro

u.FL to SMA female panel 200mm pigtail
SKU: ITBP-0011 [P/N ITBP-UFL-SMAF#200]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 200mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




3,75 Euro

u.FL to RP-SMA female panel 100mm pigtail
SKU: ITBP-0017 [P/N ITBP-UFL-RPSMAF#100]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 100mm
- connectors: 1 x uFL (IPEX) + 1 x RP-SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,75 Euro

u.FL to RP-SMA female panel 200mm pigtail
SKU: ITBP-0018 [P/N ITBP-UFL-RPSMAF#200]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 200mm
- connectors: 1 x uFL (IPEX) + 1 x RP-SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




13,80 Euro

coaxial cable 5m, connectors SMA F and SMA M, for GSM, 3G, 4G/LTE, 5G, GPS, WIFI or LORA antennas
SKU: ITBP-0021 [P/N ITBP-EXT-ANT-5M-1#001]


Specifications:
-frequencies: 30~2400MHz
-connector a: SMA female
-connector b: SMA male
-RF gain/100MHz: -0.3dBpm;
-RF gain/100MHz: -0.3dBpm;
-RF gain/440MHz: -0.8dBpm;
-RF gain/1000MHz: -0.9dBpm;
-RF gain/2400MHz: -2.4dBpm;
-cable type: RG174
-cable length: 5m
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%

* compatible accesory.
Available in stock.

Add to cart To checkout




23,80 Euro

coaxial cable 10m, connectors SMA F and SMA M, for GSM, 3G, 4G/LTE, 5G, GPS, WIFI or LORA antennas
SKU: ITBP-0020 [P/N ITBP-EXT-ANT-10M-1#001]


Specifications:
-frequencies: 30~2400MHz
-connector a: SMA female
-connector b: SMA male
-RF gain/100MHz: -0.3dBpm;
-RF gain/100MHz: -0.3dBpm;
-RF gain/440MHz: -0.8dBpm;
-RF gain/1000MHz: -0.9dBpm;
-RF gain/2400MHz: -2.4dBpm;
-cable type: RG174
-cable length: 10m
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%

* compatible accesory.
Available in stock.

Add to cart To checkout




3,15 Euro

embedded antenna 850Mhz->2250Mhz w. u.FL 100mm cable
SKU: ITBP-0010 [P/N ITBP-EMB2-UFL#100]

Embedded 4G (LTE), 3G, 2G (GSM) antenna, 850Mhz->2250Mhz, 10 cm cable, uFL, 2dBi gain, adhesive mounting
* compatible accesory.
Available in stock.

Add to cart To checkout




11,95 Euro

High performance 4G (LTE), 3G, 2G (GSM) external antenna, 5 m cable, SMA, 5dBi gain, magnetic mounting
SKU: ITBP-0016 [P/N ITBP-GSM-ANT-5dBi-2#001]


Specifications:
-frequencies: 824~960 / 1710~2170MHz
-RF gain: 5dBi
-V.S.W.R: <2
-polarization: linear
-cable type: RG174
-cable length: 5m
-connectors: 1 x SMA (male/regular)
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%
-mounting type: magnetic

* compatible accesory.
Available in stock.

Add to cart To checkout




9,95 Euro

High performance 4G (LTE), 3G, 2G (GSM) external antenna, 3 m cable, SMA, 5dBi gain, magnetic mounting
SKU: ITBP-0014 [P/N ITBP-GSM-ANT-5dBi-1#001]


Specifications:
-frequencies: 824~960 / 1710~2170MHz
-RF gain: 5dBi
-V.S.W.R: <2
-polarization: linear
-cable type: RG174
-cable length: 3m
-connectors: 1 x SMA (male/regular)
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%
-mounting type: magnetic

* compatible accesory.
Available in stock.

Add to cart To checkout




8,95 Euro

LTE 3G GSM flat antenna, 2dB, SMA, 3m cable
SKU: ITBP-0013 [P/N ITBP-GSM-ANT-SMA-FLAT02#001]

LTE/3G/GSM antenna, 824 – 2170MHz, 2dB gain, sticker mounting type, 3m RG174 cable, SMA connector

* compatible accesory.
Available in stock.

Add to cart To checkout




19,90 Euro

Professional multi-band 5G LTE antenna, 5.5 dBi, rod type, SMA, swivel, no cable
SKU: ITBP-0019 [P/N ITBP-5G-ANT-SMAM#001]


Main specifications
- frequencies: 698-960 MHz, 1.71-2.69 GHz, 3.3-4.2 GHz and 4.4-5.0MHz
- type: rod, swivel
- cable type: no cable
- connectors: 1 x SMA M*
- polarization: linear
- gain: max. 5.5dBi
- return loss: < -5 dB
- operating temperatures: -40 +85 Celsius
- humidity: 0% - 100%
- mounting type: connector


Together with SMA-SMA coaxial cable extender, as ITBP-0020, ITBP-0021 0r ITBP-0023, this 5G LTE antenna can be installed outdoor.

* compatible accesory.
Available in stock.

Add to cart To checkout




6,98 Euro

Professional multi-band LTE antenna, 2 dBi, rod type, SMA, swivel, no cable
SKU: ITBP-0022 [P/N ITBP-LTE-ANT-SMAM#001]


Main specifications
- frequencies: 700-960 MHz and 1710-2690MHz
- type: rod, swivel
- cable type: no cable
- connectors: 1 x SMA M*
- polarization: linear
- gain: 2dBi
- V.S.W.R: ~2
- operating temperatures: -40 +85 Celsius
- humidity: 0% - 100%
- mounting type: connector


Together with SMA-SMA coaxial cable extender, as ITBP-0020, ITBP-0021 or ITBP-0023, this LTE antenna can be installed outdoor.

* compatible accesory.
Available in stock.

Add to cart To checkout




4,95 Euro

GSM Antenna SMA 90 degree
SKU: ITBP-0012 [P/N ITBP-GSM-ANT-SMA90D#001]

LTE/3G/GSM antenna, 850/900/1800/1900 MHz, 2dB gain, no cable, right angle SMA connector
* compatible accesory.
Available in stock.

Add to cart To checkout












s-Sense environmental sensor breakout bords family, I2C interface


CCS811 + HDC2010 I2C sensor breakboard  CO2 tVoC temperature humidity Sensor   BME680 I2C sensor breakboard Air Quality bVoC temperature humidity presure Sensor
CCS811 I2C sensor breakout board  CO2 tVoC Sensor   HDC2010 I2C sensor breakout board temperature humidity Sensor
BME280 I2C sensor breakout board temperature humidity pressure Sensor   BMP280 I2C sensor breakout board temperature pressure Sensor

s-Sense environmental sensor breakout boards with I2C interface

24,49 Euro

HDC2010 + CCS811 sensors breakout, I2C interface
SKU: ITBP-6006 [P/N SS-HDC2010+CCS811#I2C]

s-Sense by itbrainpower.net I2C HDC2010 + CCS811
* AMS CCS811 [Air Quality - CO2 and tVOC (total volatile organic componds)] and TI HDC2010 [temperature and humidity]
* input voltages between 3.3-5V
* I2C interface, 3.3-5V auto [default I2C voltage follows the powering voltage]
* I2C voltage option via solder jumper [Eg.: power at 5V and I2C at 3.3V; power and I2C at 2.2V]
* additional CCS811 WAKE, RESET and IRQ signals are available on PCB bottom
* additional HDC2010 IRQ signal is available on PCB bottom
* alternative sensor I2C addresses via solder jumpers
* compatible with Arduino (all), Raspberry PI (all) and other SBC / MCU
* compatible with xyz-mIoT boards(Arduino Zero like)
* big soldering pads on 2.54 mm [0.1"] pitch for standard row header / connector

* 13x27mm, around 2grams

Designed and manufactured in EU.

Available in stock.

Add to cart To checkout




17,99 Euro

CCS811 sensor breakout, I2C interface
SKU: ITBP-6004 [P/N SS-CCS811#I2C]

s-Sense by itbrainpower.net I2C CCS811
* AMS CCS811 [Air Quality - CO2 and tVOC (total volatile organic componds)] sensor breakout
* input voltages between 3.3-5V
* I2C interface, 3.3-5V auto [default I2C voltage follows the powering voltage]
* I2C voltage option via solder jumper [Eg.: power at 5V and I2C at 3.3V; power and I2C at 2.2V]
* additional CCS811 WAKE, RESET and IRQ signals are available on PCB bottom
* alternative sensor I2C addresses via solder jumpers
* compatible with Arduino (all), Raspberry PI (all) and other SBC / MCU
* compatible with xyz-mIoT boards(Arduino Zero like)
* big soldering pads on 2.54 mm [0.1"] pitch for standard row header / connector

* 13x27mm, around 2grams

Designed and manufactured in EU.

Available in stock.

Add to cart To checkout




19,99 Euro
13,99 Euro

BME680 sensor breakout, I2C interface
SKU: ITBP-6003 [P/N SS-BME680#I2C]

s-Sense by itbrainpower.net I2C BME680
* Bosch BME680 [Air Quality - bVOC (body volatile organic compounds), temperature, humidity and pressure] sensor breakout
* input voltages between 3.3-5V
* I2C interface, 3.3-5V auto [default I2C voltage follows the powering voltage]
* I2C voltage option via solder jumper [Eg.: power at 5V and I2C at 3.3V; power and I2C at 2.2V]
* alternative sensor I2C addresses via solder jumpers
* compatible with Arduino (all), Raspberry PI (all) and other SBC / MCU
* compatible with xyz-mIoT boards(Arduino Zero like)
* big soldering pads on 2.54 mm [0.1"] pitch for standard row header / connector

* 13x27mm, around 2grams

Designed and manufactured in EU.

Available in stock.

Add to cart To checkout




15,49 Euro
9,59 Euro

BME280 sensor breakout, I2C interface
SKU: ITBP-6002 [P/N SS-BME280#I2C]

s-Sense by itbrainpower.net I2C BME280
* Bosch BME280 [temperature, humidity and pressure] sensor breakout
* input voltages between 3.3-5V
* I2C interface, 3.3-5V auto [default I2C voltage follows the powering voltage]
* I2C voltage option via solder jumper [Eg.: power at 5V and I2C at 3.3V; power and I2C at 2.2V]
* alternative sensor I2C addresses via solder jumpers
* compatible with Arduino (all), Raspberry PI (all) and other SBC / MCU
* compatible with xyz-mIoT boards(Arduino Zero like)
* big soldering pads on 2.54 mm [0.1"] pitch for standard row header / connector

* 13x27mm, around 2grams

Designed and manufactured in EU.

Available in stock.

Add to cart To checkout




8,99 Euro
5,99 Euro

HDC2010 sensor breakout, I2C interface
SKU: ITBP-6005 [P/N SS-HDC2010#I2C]

s-Sense by itbrainpower.net I2C HDC2010
* TI HDC2010 [temperature and humidity] sensor breakout
* input voltages between 3.3-5V
* I2C interface, 3.3-5V auto [default I2C voltage follows the powering voltage]
* I2C voltage option via solder jumper [Eg.: power at 5V and I2C at 3.3V; power and I2C at 2.2V]
* additional HDC2010 IRQ signal is available on PCB bottom
* alternative sensor I2C addresses via solder jumpers
* compatible with Arduino (all), Raspberry PI (all) and other SBC / MCU
* compatible with xyz-mIoT boards(Arduino Zero like)
* big soldering pads on 2.54 mm [0.1"] pitch for standard row header / connector

* 13x27mm, around 2grams

Designed and manufactured in EU.

Available in stock.

Add to cart To checkout




8,49 Euro

BMP280 sensor breakout, I2C interface
SKU: ITBP-6001 [P/N SS-BMP280#I2C]

s-Sense by itbrainpower.net I2C BMP280
* Bosch BMP280 [temperature and pressure] sensor breakout
* input voltages between 3.3-5V
* I2C interface, 3.3-5V auto [default I2C voltage follows the powering voltage]
* I2C voltage option via solder jumper [Eg.: power at 5V and I2C at 3.3V; power and I2C at 2.2V]
* alternative sensor I2C addresses via solder jumpers
* compatible with Arduino (all), Raspberry PI (all) and other SBC / MCU
* compatible with xyz-mIoT boards(Arduino Zero like)
* big soldering pads on 2.54 mm [0.1"] pitch for standard row header / connector

* 13x27mm, around 2grams

Designed and manufactured in EU.

Available in stock.

Add to cart To checkout




23,99 Euro
14,99 Euro

BME688 sensor breakout, I2C interface
SKU: ITBP-6007 [P/N SS-BME688#I2C]

s-Sense by itbrainpower.net I2C BME688
* Bosch BME688 [Air Quality - VSC (Volatile Sulfur Compounds), bVOC (body volatile organic compounds), temperature, humidity and pressure] AI (artificial intelligence) digital nose sensor breakout
* input voltages between 3.3-5V
* I2C interface, 3.3-5V auto [default I2C voltage follows the powering voltage]
* I2C voltage option via solder jumper [Eg.: power at 5V and I2C at 3.3V; power and I2C at 2.2V]
* alternative sensor I2C addresses via solder jumpers
* compatible with Arduino (all), Raspberry PI (all) and other SBC / MCU
* compatible with xyz-mIoT boards(Arduino Zero like)
* big soldering pads on 2.54 mm [0.1"] pitch for standard row header / connector

* 13x27mm, around 2grams

Designed and manufactured in EU.

Available in stock.

Add to cart To checkout












u-GSM plug-in modems for Raspberry PI and BeagleBone Black (also, Arduino compatible)


universal LPWR LTE-CATM1/NB-IoT/4G/3G/GSM modem having BBB/RPI and ITBPMM embedded interfaces bottom side   universal LPWR LTE-CATM1/NB-IoT/4G/3G/GSM modem having BBB/RPI and ITBPMM embedded interfaces top side

u-GSM plug-in modems for Raspberry PI and BeagleBone Black (also, Arduino compatible)

39,69 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3019 [P/N UGSM219-BG95M2#UFL]

Equipped with:
* Quectel BG95-M2 module - Worldwide LTE CAT M1 + NB IoT + [LTE CATNB1 and CATNB2] + GNSS
* uFL connector - LTE side

Features:
* Raspberry PI, Beagle Bone Black and ITBPMM embedded interfaces
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* high performance GNSS [GPS + GLONASS] engine embedded having passive and active antenna support;
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* uFL connector - GNSS side
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




41,19 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3020 [P/N UGSM219-BG95M2#SMA]

Equipped with:
* Quectel BG95-M2 module - Worldwide LTE CAT M1 + NB IoT [LTE CATNB1 and CATNB2] + GNSS
* SMA connector - LTE side

Features:
* Raspberry PI (plug-in), Beagle Bone Black (plug-in) and ITBPMM embedded interfaces. Due to mechanical reasons, the RPI and BBB plug-in interfaces cannot be used with this SMA variant.
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* high performance GNSS [GPS + GLONASS] engine embedded having passive and active antenna support;
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* uFL connector - GNSS side
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




41,69 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3009 [P/N UGSM219-BG96#UFL]

Equipped with:
* Quectel BG96 module - Worldwide LTE CAT M1 + NB IoT + GSM + GNSS
* uFL connector - LTE side

Features:
* Raspberry PI, Beagle Bone Black and ITBPMM embedded interfaces
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* high performance GNSS [GPS + GLONASS] engine embedded having passive and active antenna support;
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* uFL connector - GNSS side
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




43,19 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3010 [P/N UGSM219-BG96#SMA]

Equipped with:
* Quectel BG96 module - Worldwide LTE CAT M1 + NB IoT + GSM + GNSS
* SMA connector - LTE side

Features:
* Raspberry PI (plug-in), Beagle Bone Black (plug-in) and ITBPMM embedded interfaces. Due to mechanical reasons, the RPI and BBB plug-in interfaces cannot be used with this SMA variant.
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* high performance GNSS [GPS + GLONASS] engine embedded having passive and active antenna support;
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* uFL connector - GNSS side
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




29,78 Euro
26,99 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3011 [P/N UGSM219-BC95G#UFL]

Equipped with:
* Quectel BC95G module - Worldwide LTE NB IoT only
* uFL connector

Features:
* Raspberry PI, Beagle Bone Black and ITBPMM embedded interfaces
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 250mA;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* * super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




31,28 Euro
27,99 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3012 [P/N UGSM219-BC95G#SMA]

Equipped with:
* Quectel BC95G module - Worldwide LTE NB IoT only
* SMA connector

Features:
* Raspberry PI (plug-in), BeagleBone Black (plug-in) and ITBPMM embedded interfaces. Due to mechanical reasons, the RPI and BBB plug-in interfaces cannot be used with this SMA variant.
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 250mA;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* * super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




84,99 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3001 [P/N UGSM219-EG95E#UFL]

Equipped with:
* Quectel EG95E module - European LTE [IoT/M2M-optimized LTE CAT4], 3G and GSM
* uFL connector

Features:
* Raspberry PI, Beagle Bone Black and ITBPMM embedded interfaces
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




86,49 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3002 [P/N UGSM219-EG95E#SMA]

Equipped with:
* Quectel EG95E module - European LTE [IoT/M2M-optimized LTE CAT4], 3G and GSM
* SMA connector

Features:
* Raspberry PI (plug-in), BeagleBone Black (plug-in) and ITBPMM embedded interfaces. Due to mechanical reasons, the RPI and BBB plug-in interfaces cannot be used with this SMA variant.
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




72,99 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3003 [P/N UGSM219-EG91E#UFL]

Equipped with:
* Quectel EG91E module - European LTE [IoT/M2M-optimized LTE CAT1], 3G and GSM.
* uFL connector

Features:
* Raspberry PI, Beagle Bone Black and ITBPMM embedded interfaces
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




74,49 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3004 [P/N UGSM219-EG91E#SMA]

Equipped with:
* Quectel EG91E module - European LTE [IoT/M2M-optimized LTE CAT1], 3G and GSM.
* SMA connector

Features:
* Raspberry PI (plug-in), BeagleBone Black (plug-in) and ITBPMM embedded interfaces. Due to mechanical reasons, the RPI and BBB plug-in interfaces cannot be used with this SMA variant.
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




89,99 Euro
80,99 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3005 [P/N UGSM219-EG95NA#UFL]

Equipped with:
* Quectel EG95NA module - North American LTE [IoT/M2M-optimized LTE CAT4] and 3G + GNSS
* uFL connector - LTE side

Features:
* Raspberry PI, Beagle Bone Black and ITBPMM embedded interfaces
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* high performance GNSS [GPS + GLONASS] engine embedded having passive and active antenna support;
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* uFL connector - GNSS side
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




91,49 Euro
81,99 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3006 [P/N UGSM219-EG95NA#SMA]

Equipped with:
* Quectel EG95NA module - North American LTE [IoT/M2M-optimized LTE CAT4] and 3G + GNSS
* SMA connector - LTE side

Features:
* Raspberry PI (plug-in), BeagleBone Black (plug-in) and ITBPMM embedded interfaces. Due to mechanical reasons, the RPI and BBB plug-in interfaces cannot be used with this SMA variant.
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* high performance GNSS [GPS + GLONASS] engine embedded having passive and active antenna support;
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 4G NANO SIZE SIM socket
* SMA connector - GNSS side
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




51,48 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3013 [P/N UGSM219-UG96#UFL]

Equipped with:
* Quectel UG96 module - Worldwide 3G/UMTS + GSM
* uFL connector

Features:
* Raspberry PI, Beagle Bone Black and ITBPMM embedded interfaces
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 3G NANO SIZE SIM socket
* * super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




46,80 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3015 [P/N UGSM219-UG95E#UFL]

Equipped with:
* Quectel UG95E module - European 3G/UMTS + GSM
* uFL connector

Features:
* Raspberry PI, Beagle Bone Black and ITBPMM embedded interfaces
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 3G NANO SIZE SIM socket
* * super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Out of stock. More info - contact us.

To checkout




21,69 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3017 [P/N UGSM219-M95FA#UFL]

Equipped with:
* Quectel M95FA module - Worldwide GSM [quad band]
* uFL connector

Features:
* Raspberry PI, Beagle Bone Black and ITBPMM embedded interfaces
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 2G/GSM NANO SIZE SIM socket
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




23,19 Euro

u-GSM shield v2.19 by itbrainpower.net - second generation modular modem shield
SKU: ITBP-3018 [P/N UGSM219-M95FA#SMA]

Equipped with:
* Quectel M95FA module - Worldwide GSM [quad band]
* SMA connector

Features:
* Raspberry PI (plug-in), BeagleBone Black (plug-in) and ITBPMM embedded interfaces. Due to mechanical reasons, the RPI and BBB plug-in interfaces cannot be used with this SMA variant.
* PCB can be trimmed in order to fit the Raspberry PI format, or ITBPMM format
* USB PADS for soldering
* soldering pads for external SIM support
* VIA pads for super-capacitor [or additional capacitor] soldering
* 3-5V auto voltage support for UART and control GPIOs [ENABLE, RESET, STATUS and RI]
* USB [mini B] with Raspberry PI and BeagleBone Black Debian support
* embedded charger - LiPo battery / LiIon battery / super-capacitor support --> can be powered directly from RPI / BBB 5V PINs!!! or from USB
* supports direct powering [no battery, no super-capacitor required]: 4V, 650mA sustained and 2A pulse capable power supply it is required;
* modem power separation [enables modem advanced sleep mode]
* Python, PPP and shell scripting support for Linux;
* Arduino C code support
* 2G/GSM NANO SIZE SIM socket
* super compact [main partition w/o RPI&BBB connectors]: 27 x 45mm;
* optional external(20.3x34.29mm) pin to pin plugable 5-19V switching power supply [itbrainpower.net gSPS102#4V(DDRV)]
* digital/powering interface options: via 0.1"(2.54mm) pin header
* digital/powering compatible ITBMM interface [fits with all itbrainpower.net modular modems]

Available in stock.

Add to cart To checkout




Bellow, compatible accesories:


1,55 Euro

u-GSM PCB trim service to fit Raspaberry PI format

u-GSM PCB trim service to fit Raspaberry PI format
* compatible accesory.
Available in stock.

Add to cart To checkout




1,55 Euro

u-GSM PCB trim service to fit ITBPMM format

u-GSM PCB trim service to fit ITBPMM format
* compatible accesory.
Available in stock.

Add to cart To checkout




1,95 Euro

on-board soldered 2x10 female header for Raspberry PI

on-board soldered 2x10 female header for Raspberry PI
* compatible accesory.
Available in stock.

Add to cart To checkout




1,95 Euro

on-board soldered 2x10 male header for BeagleBone Black

on-board soldered 2x10 male header for BeagleBone Black
* compatible accesory.
Available in stock.

Add to cart To checkout




4,95 Euro

super capacitor for itbrainpower modular modems
P/N SCAP1F5V#001

super capacitor 1F, 5V, ESR 150 mOhm
* compatible accesory.
Available in stock.

Add to cart To checkout




7,25 Euro

g-SPS 4V adapter board v1.02 by itbrainpower.net
SKU: ITBP-0001 [P/N gSPS102#4V(DDRV)]

itbrainpower.net modular modem pin to pin compatible
* external plugable 5-19V input, 4V output, max 2A, switching power supply. 20.3x34.29mm
* input powering selector: itbrainpower.net modular modem USB or external sources
* disable (deep sleep) input pin
* for itbrainpower.net modular modems board usage without LiPOL
* UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS intefaces pass trough
* compatible accesory.
Available in stock.

Add to cart To checkout




6,95 Euro

g-SPS 5V adapter board v1.02 by itbrainpower.net
SKU: ITBP-0002 [P/N gSPS102#5V(LiPOL)]

itbrainpower.net modular modem pin to pin compatible
* external plugable 6-19V input, 5V output, max 2A, switching power supply
* disable (deep sleep) input pin
* for itbrainpower.net modular modem boards with LiPOL usage
* UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS intefaces pass trough
* compatible accesory.
Available in stock.

Add to cart To checkout




2,76 Euro

i-hatGSM3G v1.01 by itbrainpower.net
P/N i-hatGSM3G101B

itbrainpower.net modular modems compatible
* Raspberry PI HAT adapter board
* Raspberry PI B+, Raspberry PI 2, Raspberry PI ZERO and Raspberry PI 3 compatible
* compatible with all itbrainpower.net modular modem shields, chained or not with g-SPS 4V/5V switching power supply boards
* used in chain with g-SPS 5V version [LiPOL] can be used to power any flavor of Raspberry PI boards (including Raspberry PI 3)
* compatible with other Linux ARM boards having the PIO connector compatible with PRi (Eg. BananaPI, BeagleBone,...)
* the bundle contains: 2.54 mm(0.1") 2x10 pin-header socket 1pcs., 2.54 mm(0.1") 1x10 pin-header socket 1pcs. and i-hatGSM3G RPi HAT adapter board 1pcs.
* compatible accesory.
Available in stock.

Add to cart To checkout




2,38 Euro

j-328GSM3GLader v1.02 by itbrainpower.net
P/N j328GSM3GLader102B


itbrainpower.net modular modems compatible
* Arduino Micro / Mini / Nano like adapter board
* compatible with Arduino Micro, Arduino Nano USB, ArduinoPro Mini, Atmega32U4 based Fio board, a-star mini(no GND connection), Arduino Yun Mini, Metro Mini 328(no GND connection), Pro Trinket(no GND connection), RedStick, other mini-boards
* can be interfaced even with ARDUINO UNO!
* itbrainpower.net modular modem shields compatible chained or not with g-SPS 4V/5V switching power supply boards
* the bundle contains: 2.54 mm(0.1") 1x10 pin-header socket 1pcs., 2.54 mm(0.1") 1x8 pin-header socket 1pcs. and j-328GSM3GLader Arduino Micro adapter board 1pcs.
* compatible accesory.
Available in stock.

Add to cart To checkout




0,65 Euro

Lithium Polymer battery connector
SKU: ITBP-0006 [P/N ITBP-LiPOL-CON#TP01]


* compatible accesory.
Available in stock.

Add to cart To checkout




3,15 Euro

u.FL to SMA female panel 75mm pigtail
SKU: ITBP-0007 [P/N ITBP-UFL-SMAF#075]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 75mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




3,75 Euro

u.FL to SMA female panel 100mm pigtail
SKU: ITBP-0008 [P/N ITBP-UFL-SMAF#100]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 100mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,29 Euro

u.FL to SMA female panel 150mm pigtail
SKU: ITBP-0009 [P/N ITBP-UFL-SMAF#150]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 150mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,75 Euro

u.FL to SMA female panel 200mm pigtail
SKU: ITBP-0011 [P/N ITBP-UFL-SMAF#200]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 200mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




3,75 Euro

u.FL to RP-SMA female panel 100mm pigtail
SKU: ITBP-0017 [P/N ITBP-UFL-RPSMAF#100]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 100mm
- connectors: 1 x uFL (IPEX) + 1 x RP-SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,75 Euro

u.FL to RP-SMA female panel 200mm pigtail
SKU: ITBP-0018 [P/N ITBP-UFL-RPSMAF#200]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 200mm
- connectors: 1 x uFL (IPEX) + 1 x RP-SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




13,80 Euro

coaxial cable 5m, connectors SMA F and SMA M, for GSM, 3G, 4G/LTE, 5G, GPS, WIFI or LORA antennas
SKU: ITBP-0021 [P/N ITBP-EXT-ANT-5M-1#001]


Specifications:
-frequencies: 30~2400MHz
-connector a: SMA female
-connector b: SMA male
-RF gain/100MHz: -0.3dBpm;
-RF gain/100MHz: -0.3dBpm;
-RF gain/440MHz: -0.8dBpm;
-RF gain/1000MHz: -0.9dBpm;
-RF gain/2400MHz: -2.4dBpm;
-cable type: RG174
-cable length: 5m
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%

* compatible accesory.
Available in stock.

Add to cart To checkout




23,80 Euro

coaxial cable 10m, connectors SMA F and SMA M, for GSM, 3G, 4G/LTE, 5G, GPS, WIFI or LORA antennas
SKU: ITBP-0020 [P/N ITBP-EXT-ANT-10M-1#001]


Specifications:
-frequencies: 30~2400MHz
-connector a: SMA female
-connector b: SMA male
-RF gain/100MHz: -0.3dBpm;
-RF gain/100MHz: -0.3dBpm;
-RF gain/440MHz: -0.8dBpm;
-RF gain/1000MHz: -0.9dBpm;
-RF gain/2400MHz: -2.4dBpm;
-cable type: RG174
-cable length: 10m
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%

* compatible accesory.
Available in stock.

Add to cart To checkout




3,15 Euro

embedded antenna 850Mhz->2250Mhz w. u.FL 100mm cable
SKU: ITBP-0010 [P/N ITBP-EMB2-UFL#100]

Embedded 4G (LTE), 3G, 2G (GSM) antenna, 850Mhz->2250Mhz, 10 cm cable, uFL, 2dBi gain, adhesive mounting
* compatible accesory.
Available in stock.

Add to cart To checkout




11,95 Euro

High performance 4G (LTE), 3G, 2G (GSM) external antenna, 5 m cable, SMA, 5dBi gain, magnetic mounting
SKU: ITBP-0016 [P/N ITBP-GSM-ANT-5dBi-2#001]


Specifications:
-frequencies: 824~960 / 1710~2170MHz
-RF gain: 5dBi
-V.S.W.R: <2
-polarization: linear
-cable type: RG174
-cable length: 5m
-connectors: 1 x SMA (male/regular)
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%
-mounting type: magnetic

* compatible accesory.
Available in stock.

Add to cart To checkout




9,95 Euro

High performance 4G (LTE), 3G, 2G (GSM) external antenna, 3 m cable, SMA, 5dBi gain, magnetic mounting
SKU: ITBP-0014 [P/N ITBP-GSM-ANT-5dBi-1#001]


Specifications:
-frequencies: 824~960 / 1710~2170MHz
-RF gain: 5dBi
-V.S.W.R: <2
-polarization: linear
-cable type: RG174
-cable length: 3m
-connectors: 1 x SMA (male/regular)
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%
-mounting type: magnetic

* compatible accesory.
Available in stock.

Add to cart To checkout




8,95 Euro

LTE 3G GSM flat antenna, 2dB, SMA, 3m cable
SKU: ITBP-0013 [P/N ITBP-GSM-ANT-SMA-FLAT02#001]

LTE/3G/GSM antenna, 824 – 2170MHz, 2dB gain, sticker mounting type, 3m RG174 cable, SMA connector

* compatible accesory.
Available in stock.

Add to cart To checkout




19,90 Euro

Professional multi-band 5G LTE antenna, 5.5 dBi, rod type, SMA, swivel, no cable
SKU: ITBP-0019 [P/N ITBP-5G-ANT-SMAM#001]


Main specifications
- frequencies: 698-960 MHz, 1.71-2.69 GHz, 3.3-4.2 GHz and 4.4-5.0MHz
- type: rod, swivel
- cable type: no cable
- connectors: 1 x SMA M*
- polarization: linear
- gain: max. 5.5dBi
- return loss: < -5 dB
- operating temperatures: -40 +85 Celsius
- humidity: 0% - 100%
- mounting type: connector


Together with SMA-SMA coaxial cable extender, as ITBP-0020, ITBP-0021 0r ITBP-0023, this 5G LTE antenna can be installed outdoor.

* compatible accesory.
Available in stock.

Add to cart To checkout




6,98 Euro

Professional multi-band LTE antenna, 2 dBi, rod type, SMA, swivel, no cable
SKU: ITBP-0022 [P/N ITBP-LTE-ANT-SMAM#001]


Main specifications
- frequencies: 700-960 MHz and 1710-2690MHz
- type: rod, swivel
- cable type: no cable
- connectors: 1 x SMA M*
- polarization: linear
- gain: 2dBi
- V.S.W.R: ~2
- operating temperatures: -40 +85 Celsius
- humidity: 0% - 100%
- mounting type: connector


Together with SMA-SMA coaxial cable extender, as ITBP-0020, ITBP-0021 or ITBP-0023, this LTE antenna can be installed outdoor.

* compatible accesory.
Available in stock.

Add to cart To checkout




4,95 Euro

GSM Antenna SMA 90 degree
SKU: ITBP-0012 [P/N ITBP-GSM-ANT-SMA90D#001]

LTE/3G/GSM antenna, 850/900/1800/1900 MHz, 2dB gain, no cable, right angle SMA connector
* compatible accesory.
Available in stock.

Add to cart To checkout












xyz-mIoT (ultra) low power ARM0 shields w. LTE, low power LTE, 2G modem or stand-alone

ARM0 IOT platform w. integrated sensors and LPWR LTE CATM1/NB-IoT/GSM modems bottom side   ARM0 IOT platform w. integrated sensors and LPWR LTE CATM1/NB-IoT/GSM modems top side

xyz-mIoT  (ultra) low power ARM0 shields w. LTE, low power LTE, 2G modem or stand-alone

47,10 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4011 [P/N XYZMIOT209#BG95M2-UFL-0000000]

On board modem:
* Quectel BG95-M2 module - Worldwide low power LTE CAT M1 + NB IoT [LTE CATNB1 and CATNB2] + GNSS
* uFL connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




49,60 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4061 [P/N XYZMIOT209#BG95M2-SMA-0000000]

On board modem:
* Quectel BG95-M2 module - Worldwide low power LTE CAT M1 + NB IoT [LTE CATNB1 and CATNB2] + GNSS
* SMA connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




48,10 Euro

xyz-mIoT 2.09 by itbrainpower.net – ultra low power ARM0 IoT shield
SKU: ITBP-4081 [P/N XYZMIOT209#BG95M2-UFL-ULP]

On board modem:
* Quectel BG95-M2 module - Worldwide low power LTE CAT M1 + NB IoT [LTE CATNB1 and CATNB2] + GNSS
* uFL connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Ultra low power design:
* yesdown to 7-9uA total shield deep sleep current support.
* Lithium Primer battery only supported!

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board battery charger:
* no.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




50,60 Euro

xyz-mIoT 2.09 by itbrainpower.net – ultra low power ARM0 IoT shield
SKU: ITBP-4091 [P/N XYZMIOT209#BG95M2-SMA-ULP]

On board modem:
* Quectel BG95-M2 module - Worldwide low power LTE CAT M1 + NB IoT [LTE CATNB1 and CATNB2] + GNSS
* SMA connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Ultra low power design:
* yesdown to 7-9uA total shield deep sleep current support.
* Lithium Primer battery only supported!

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board battery charger:
* no.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




49,10 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4003 [P/N XYZMIOT209#BG96-UFL-0000000]

On board modem:
* Quectel BG96 module - Worldwide low power LTE CAT M1 + NB IoT + eGPRS + GNSS
* uFL connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




51,60 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4053 [P/N XYZMIOT209#BG96-SMA-0000000]

On board modem:
* Quectel BG96 module - Worldwide low power LTE CAT M1 + NB IoT + eGPRS + GNSS
* SMA connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




50,10 Euro

xyz-mIoT 2.09 by itbrainpower.net – ultra low power ARM0 IoT shield
SKU: ITBP-4073 [P/N XYZMIOT209#BG96-UFL-ULP]

On board modem:
* Quectel BG96 module - Worldwide low power LTE CAT M1 + NB IoT + eGPRS + GNSS
* uFL connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Ultra low power design:
* yesdown to 7-9uA total shield deep sleep current support.
* Lithium Primer battery only supported!

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board battery charger:
* no.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




52,60 Euro

xyz-mIoT 2.09 by itbrainpower.net – ultra low power ARM0 IoT shield
SKU: ITBP-4083 [P/N XYZMIOT209#BG96-SMA-ULP]

On board modem:
* Quectel BG96 module - Worldwide low power LTE CAT M1 + NB IoT + eGPRS + GNSS
* SMA connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Ultra low power design:
* yesdown to 7-9uA total shield deep sleep current support.
* Lithium Primer battery only supported!

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board battery charger:
* no.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




52,25 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4002 [P/N XYZMIOT209#BG96-UFL-1100000]

On board modem:
* Quectel BG96 module - Worldwide low power LTE CAT M1 + NB IoT + eGPRS + GNSS
* uFL connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* HDC2010 - Low Power Humidity and Temperature Digital Sensor
* DRV5032 - Ultra Low Power Digital Switch Hall Effect Sensor


Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Out of stock. More info - contact us.

To checkout




33,44 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4006 [P/N XYZMIOT209#BC95G-UFL-0000000]

On board modem:
* Quectel BC95G module - Worldwide low power NB IoT [LTE CATNB1]
* uFL connector
* GNSS support - no

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




34,94 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4056 [P/N XYZMIOT209#BC95G-SMA-0000000]

On board modem:
* Quectel BC95G module - Worldwide low power NB IoT [LTE CATNB1]
* SMA connector
* GNSS support - no

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




67,23 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4012 [P/N XYZMIOT209#EG91E-UFL-0000000]

On board modem:
* Quectel EG91E module - European LTE [IoT/M2M-optimized LTE CAT1], 3G and GSM
* uFL connector - LTE side
* GNSS support - no

Low power support:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




68,73 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4062 [P/N XYZMIOT209#EG91E-SMA-0000000]

On board modem:
* Quectel EG91E module - European LTE [IoT/M2M-optimized LTE CAT1], 3G and GSM
* SMA connector - LTE side
* GNSS support - no

Low power support:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




87,95 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4014 [P/N XYZMIOT209#EG95A-UFL-0000000]

On board modem:
* Quectel EG95A module - North American LTE [IoT/M2M-optimized LTE CAT4] and 3G + GNSS
* uFL connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




89,45 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4064 [P/N XYZMIOT209#EG95A-SMA-0000000]

On board modem:
* Quectel EG95A module - North American LTE [IoT/M2M-optimized LTE CAT4] and 3G + GNSS
* SMA connector - LTE side and uFL connector - GNSS side
* GNSS support - yes [GPS, GLONASS, BeiDou/Compass, Galileo and QZSS]

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




25,35 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4009 [P/N XYZMIOT209#M95FA-UFL-0000000]

On board modem:
* Quectel M95FA module - Worldwide GSM/GPRS [quad band]
* uFL connector
* GNSS support - no

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




28,67 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4008 [P/N XYZMIOT209#M95FA-UFL-1100000]

On board modem:
* Quectel M95FA module - Worldwide GSM/GPRS [quad band]
* uFL connector
* GNSS support - no

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* HDC2010 - Low Power Humidity and Temperature Digital Sensor
* DRV5032 - Ultra Low Power Digital Switch Hall Effect Sensor


Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




45,14 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-4007 [P/N XYZMIOT209#M95FA-UFL-1100100]

On board modem:
* Quectel M95FA module - Worldwide GSM/GPRS [quad band]
* uFL connector
* GNSS support - no

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* HDC2010 - Low Power Humidity and Temperature Digital Sensor
* CCS811 - Ultra Low Power Digital Gas Sensor for Monitoring Indoor Air Quality
* DRV5032 - Ultra Low Power Digital Switch Hall Effect Sensor


Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* one LTE/4G NANO SIM socket
* external SIM connecting pads
* modem USB soldering pads
* modem UART port soldering pads for AT debug
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Available in stock.

Add to cart To checkout




15,91 Euro

xyz-mIoT 2.09 by itbrainpower.net – low power ARM0 IoT shield
SKU: ITBP-5002 [P/N XYZMIOT209#NOMODEM-000-0000000]

On board modem:
* no modem
* GNSS support - no

Low power design:
* yesdown to 35-40uA total shield deep sleep current support.

On board battery charger:
* yes, having 6V solar cell support. Single cell LiPO/LiIoN support.

Lithium primer battery support:
* yes - via VBAT and GND pins.

On board sensors:
* NO SENSORS

Features:
* Atmel ATSAMD21G (ARM0) micro-controller with Arduino support
* mini USB type B -Programming port. Can be used for powering.
* 13 x digital ports [12 ports PWM capable]
* 1 x UART hardware port
* 1 x I2C port
* 1 x SPI port
* all digital ports are 3.3V compliant
* 5 x analog inputs
* 1.4"x1.8" (35.56 x 45.72mm)

Equivalent with Arduino Zero + LiPO battery charger in 35.56 x 45.72mm board. May be used with Lora, WIFI or Ethernet boards via SPI/UART interfaces.


Available in stock.

Add to cart To checkout




Bellow, compatible accesories:


4,95 Euro

super capacitor for itbrainpower modular modems
P/N SCAP1F5V#001

super capacitor 1F, 5V, ESR 150 mOhm
* compatible accesory.
Available in stock.

Add to cart To checkout




7,25 Euro

g-SPS 4V adapter board v1.02 by itbrainpower.net
SKU: ITBP-0001 [P/N gSPS102#4V(DDRV)]

itbrainpower.net modular modem pin to pin compatible
* external plugable 5-19V input, 4V output, max 2A, switching power supply. 20.3x34.29mm
* input powering selector: itbrainpower.net modular modem USB or external sources
* disable (deep sleep) input pin
* for itbrainpower.net modular modems board usage without LiPOL
* UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS intefaces pass trough
* compatible accesory.
Available in stock.

Add to cart To checkout




6,95 Euro

g-SPS 5V adapter board v1.02 by itbrainpower.net
SKU: ITBP-0002 [P/N gSPS102#5V(LiPOL)]

itbrainpower.net modular modem pin to pin compatible
* external plugable 6-19V input, 5V output, max 2A, switching power supply
* disable (deep sleep) input pin
* for itbrainpower.net modular modem boards with LiPOL usage
* UART TX+RX / RESET / POWER ON-OFF / RI / STS / RTS / CTS intefaces pass trough
* compatible accesory.
Available in stock.

Add to cart To checkout




0,65 Euro

Lithium Polymer battery connector
SKU: ITBP-0006 [P/N ITBP-LiPOL-CON#TP01]


* compatible accesory.
Available in stock.

Add to cart To checkout




3,15 Euro

u.FL to SMA female panel 75mm pigtail
SKU: ITBP-0007 [P/N ITBP-UFL-SMAF#075]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 75mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




3,75 Euro

u.FL to SMA female panel 100mm pigtail
SKU: ITBP-0008 [P/N ITBP-UFL-SMAF#100]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 100mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,29 Euro

u.FL to SMA female panel 150mm pigtail
SKU: ITBP-0009 [P/N ITBP-UFL-SMAF#150]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 150mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,75 Euro

u.FL to SMA female panel 200mm pigtail
SKU: ITBP-0011 [P/N ITBP-UFL-SMAF#200]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 200mm
- connectors: 1 x uFL (IPEX) + 1 x SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




3,75 Euro

u.FL to RP-SMA female panel 100mm pigtail
SKU: ITBP-0017 [P/N ITBP-UFL-RPSMAF#100]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 100mm
- connectors: 1 x uFL (IPEX) + 1 x RP-SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




4,75 Euro

u.FL to RP-SMA female panel 200mm pigtail
SKU: ITBP-0018 [P/N ITBP-UFL-RPSMAF#200]

- frequencies: up to 3.2GHz
- cable type: RF1.13
- cable length: 200mm
- connectors: 1 x uFL (IPEX) + 1 x RP-SMA F* panel type
- operating temperatures: -40 +85 Celsius
- relative humidity: up to 90%
* compatible accesory.
Available in stock.

Add to cart To checkout




13,80 Euro

coaxial cable 5m, connectors SMA F and SMA M, for GSM, 3G, 4G/LTE, 5G, GPS, WIFI or LORA antennas
SKU: ITBP-0021 [P/N ITBP-EXT-ANT-5M-1#001]


Specifications:
-frequencies: 30~2400MHz
-connector a: SMA female
-connector b: SMA male
-RF gain/100MHz: -0.3dBpm;
-RF gain/100MHz: -0.3dBpm;
-RF gain/440MHz: -0.8dBpm;
-RF gain/1000MHz: -0.9dBpm;
-RF gain/2400MHz: -2.4dBpm;
-cable type: RG174
-cable length: 5m
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%

* compatible accesory.
Available in stock.

Add to cart To checkout




23,80 Euro

coaxial cable 10m, connectors SMA F and SMA M, for GSM, 3G, 4G/LTE, 5G, GPS, WIFI or LORA antennas
SKU: ITBP-0020 [P/N ITBP-EXT-ANT-10M-1#001]


Specifications:
-frequencies: 30~2400MHz
-connector a: SMA female
-connector b: SMA male
-RF gain/100MHz: -0.3dBpm;
-RF gain/100MHz: -0.3dBpm;
-RF gain/440MHz: -0.8dBpm;
-RF gain/1000MHz: -0.9dBpm;
-RF gain/2400MHz: -2.4dBpm;
-cable type: RG174
-cable length: 10m
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%

* compatible accesory.
Available in stock.

Add to cart To checkout




3,15 Euro

embedded antenna 850Mhz->2250Mhz w. u.FL 100mm cable
SKU: ITBP-0010 [P/N ITBP-EMB2-UFL#100]

Embedded 4G (LTE), 3G, 2G (GSM) antenna, 850Mhz->2250Mhz, 10 cm cable, uFL, 2dBi gain, adhesive mounting
* compatible accesory.
Available in stock.

Add to cart To checkout




11,95 Euro

High performance 4G (LTE), 3G, 2G (GSM) external antenna, 5 m cable, SMA, 5dBi gain, magnetic mounting
SKU: ITBP-0016 [P/N ITBP-GSM-ANT-5dBi-2#001]


Specifications:
-frequencies: 824~960 / 1710~2170MHz
-RF gain: 5dBi
-V.S.W.R: <2
-polarization: linear
-cable type: RG174
-cable length: 5m
-connectors: 1 x SMA (male/regular)
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%
-mounting type: magnetic

* compatible accesory.
Available in stock.

Add to cart To checkout




9,95 Euro

High performance 4G (LTE), 3G, 2G (GSM) external antenna, 3 m cable, SMA, 5dBi gain, magnetic mounting
SKU: ITBP-0014 [P/N ITBP-GSM-ANT-5dBi-1#001]


Specifications:
-frequencies: 824~960 / 1710~2170MHz
-RF gain: 5dBi
-V.S.W.R: <2
-polarization: linear
-cable type: RG174
-cable length: 3m
-connectors: 1 x SMA (male/regular)
-operating temperatures: -40 +85 Celsius
-relative humidity: up to 100%
-mounting type: magnetic

* compatible accesory.
Available in stock.

Add to cart To checkout




8,95 Euro

LTE 3G GSM flat antenna, 2dB, SMA, 3m cable
SKU: ITBP-0013 [P/N ITBP-GSM-ANT-SMA-FLAT02#001]

LTE/3G/GSM antenna, 824 – 2170MHz, 2dB gain, sticker mounting type, 3m RG174 cable, SMA connector

* compatible accesory.
Available in stock.

Add to cart To checkout




19,90 Euro

Professional multi-band 5G LTE antenna, 5.5 dBi, rod type, SMA, swivel, no cable
SKU: ITBP-0019 [P/N ITBP-5G-ANT-SMAM#001]


Main specifications
- frequencies: 698-960 MHz, 1.71-2.69 GHz, 3.3-4.2 GHz and 4.4-5.0MHz
- type: rod, swivel
- cable type: no cable
- connectors: 1 x SMA M*
- polarization: linear
- gain: max. 5.5dBi
- return loss: < -5 dB
- operating temperatures: -40 +85 Celsius
- humidity: 0% - 100%
- mounting type: connector


Together with SMA-SMA coaxial cable extender, as ITBP-0020, ITBP-0021 0r ITBP-0023, this 5G LTE antenna can be installed outdoor.

* compatible accesory.
Available in stock.

Add to cart To checkout




6,98 Euro

Professional multi-band LTE antenna, 2 dBi, rod type, SMA, swivel, no cable
SKU: ITBP-0022 [P/N ITBP-LTE-ANT-SMAM#001]


Main specifications
- frequencies: 700-960 MHz and 1710-2690MHz
- type: rod, swivel
- cable type: no cable
- connectors: 1 x SMA M*
- polarization: linear
- gain: 2dBi
- V.S.W.R: ~2
- operating temperatures: -40 +85 Celsius
- humidity: 0% - 100%
- mounting type: connector


Together with SMA-SMA coaxial cable extender, as ITBP-0020, ITBP-0021 or ITBP-0023, this LTE antenna can be installed outdoor.

* compatible accesory.
Available in stock.

Add to cart To checkout




4,95 Euro

GSM Antenna SMA 90 degree
SKU: ITBP-0012 [P/N ITBP-GSM-ANT-SMA90D#001]

LTE/3G/GSM antenna, 850/900/1800/1900 MHz, 2dB gain, no cable, right angle SMA connector
* compatible accesory.
Available in stock.

Add to cart To checkout




















document version 1.021 / 2022-02-09 © R&D Software Solutions srl
