xyz-mIoT ** 35x45mm ARM0 IoT node(s) w. integrated modem



We are proud to annouce 4 new xyz-mIoT IoT node(s) w. integrated Cavli C16QS LTE CAT1.bis modem and 6 new u-GSM w. Cavli C16QS/C17QS LTE CAT1.bis modems for RPI/BBB and Arduino shields.
Read our last post: Modems and RaspberryPI 5. RaspberryPI OS [Debian 12 bookworm] notes..



LTE CATM + NB-IoT (QUECTEL BG96) development kit

LTE CATM + NB-IoT development kit
xyz-mIoT w. BG96 ultra low power version devkit optimized for battery operation
SKU: ITBP-11001

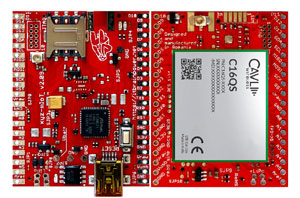

low power ARM0 shield equipped w. Cavli C16QS - LTE CAT1.bis modem European version - Arduino compatible, both sides view, 300px * xyz-mIoT v. 2.09

xyz-mIoT equipped w. C16QS modem
LTE CAT1.bis (EMEAA)
PN: XYZMIOT209#C16QS-xxx-yyyyyyy


low power ARM0 shield equipped w. Quectel EG91E - LTE CAT1 + UMTS (3G) + GSM modem European version - Arduino compatible, both sides view, 300px * xyz-mIoT v. 2.09

xyz-mIoT equipped w. EG91E modem
LTE CAT1 + 3G + 2G European (EMEAA)
PN: XYZMIOT209#EG91E-xxx-yyyyyyy


low power ARM0 shield equipped w. Quectel EG95A - LTE CAT4 + UMTS (3G) modem North American version - Arduino compatible, both sides view, 300px * xyz-mIoT v. 2.09

xyz-mIoT equipped w. EG95A modem
LTE CAT4 + 3G North American + GNSS
PN: XYZMIOT209#EG95A-xxx-yyyyyyy


low power ARM0 shield equipped w. Quectel BG96 - LTE CATM1 + NB-IOT + EGPRS + GNSS modem global version - Arduino compatible, both sides view, 300px * xyz-mIoT v. 2.09

xyz-mIoT equipped w. BG96 modem
LTE CATM1 + NB-IOT + EGPRS GLOBAL + GNSS
PN: XYZMIOT209#BG96-xxx-yyyyyyy


low power ARM0 shield equipped w. Quectel BG95 - LTE CATM1 + NB-IOT + GNSS modem global version - Arduino compatible, both sides view, 300px * xyz-mIoT v. 2.09

xyz-mIoT w. BG95-M2 modem
LTE CATM1 + NB-IOT GLOBAL + GNSS
PN: XYZMIOT209#BG95M2-xxx-yyyyyyy


low power ARM0 shield equipped w. Quectel BG95 - LTE CATM1 + NB-IOT + GNSS modem global version - Arduino compatible, both sides view, 300px * xyz-mIoT v. 2.09

xyz-mIoT w. BG95-M3 modem
LTE CATM1 + CATNB2 + EGPRS GLOBAL + GNSS
PN: XYZMIOT209#BG95M3-xxx-yyyyyyy


low power ARM0 shield equipped w. Quectel BC95G - NB-IOT only modem global version - Arduino compatible, both sides view, 300px * xyz-mIoT v. 2.09

xyz-mIoT equipped w. BC95G modem
NB-IOT only GLOBAL
PN: XYZMIOT209#BC95G-xxx-yyyyyyy


low power ARM0 shield equipped w. Quectel M95FA - GSM / GPRS modem global version - Arduino compatible, both sides view, 300px * xyz-mIoT v. 2.09

xyz-mIoT equipped w. M95FA modem
GSM / GPRS GLOBAL
PN: XYZMIOT209#M95FA-xxx-yyyyyyy


low power ARM0 shield no modem version - Arduino compatible, bottom view, 300px * xyz-mIoT v. 2.09

xyz-mIoT basic
no embedded modem
PN: XYZMIOT209#NOMODEM-000-xxxxxxx


Commercially available from April 08’th 2018, the xyz-mIoT v2.09 by itbrainpower.net is the worldwide first and most compact (35x45mm / around 7g) IoT board in this class, class that combines the functionality of the low power Arm® Cortex®-M0 32-bit SAMD21G microcontroller (in Arduino Zero / MKR compatible design) with embedded THS + tVOC + HALL + IR + tilt / vibration sensors and global low power LTE (CATM1 or NB-IoT) / LTE / 3G / GSM connectivity.


Built around Microchip / ATMEL ATSAMD21G ARM0 microcontroller and having integrated Lithium battery (LiPO / LiION) charger, the xyz-mIoT shields support endless devices / sensors / actuators interfacing via abundant 3.3V compliant interfaces (1 * I2C, 1 * SPI, 1 * UART, 13 * digital I/O - 1WIRE and PWM capable, 5 analog inputs and more) and providing support for solar powered applications and for primer Lithium battery powered low power applications (down to 35-37uA total shield sleep current).

Special ultra low power (ULP*) versions for Lithium Primer battery applications may reach even 5-7uA deep sleep total shield current.
* for ULP / LP versions info can be found in product pages

About embedded modem* - In order to fit your application requirements the xyz-mIoT shield commercially available in basic variant (no embedded modem) or equipped with various modems:

Other variants as ultra low power versions LTE / 2G global modems may be available as samples and in high volume batches for selected partners.

Talking about embedded sensors*, the xyz-mIoT shield may have 0 up to 6 integrated sensors, as:
  • high accuracy THS (temperature and humidity sensors) – TI HDC2010,
  • tVOC & CO2 (air quality sensor - total volatile organic compounds and carbon dioxide) – AMS CCS811,
  • HALL (magnetic sensor) - DRV5032 or IR (infrared sensor) KP-2012P3C,
  • secondary IR (infrared sensor) - KP-2012P3C,
  • TILT (movement vibration sensor) - SW200D or REED (magnetic sensor)


The xyz-mIoT by itbrainpower.net shields are Arduino programmable and are supported by RTCC, WDT, low power and other Arduino libraries.


GETTING STARTED posts containing powering, low power / solar cell powering tips and tricks and interfacing guidelines for GSM / low power modems, ethernet, WIFI, LORA, SD card reader, TFT displays, sensors, relays and other modules, together with CLOUD integration examples can be found in projects section.

Proudly designed and manufactured by R&D Software Solutions in the European Union.


First xyz-mIoT shield has been released in 2018.




.

* modem and embedded sensors that populates the xyz-mIoT shields are dependent on PN ordered. Read xyz-mIoT PN coding and xyz-mIoT features and capabilities docs.
** EMEAA - Europe, Middle East, Asia and Africa




More info: xyz-mIoT PN coding, xyz-mIoT shield versions - supported GSM protocols / RF bands and shield features,
xyz-mIoT Arduino ports mapping and interfaces and xyz-mIoT downloads.

Order online xyz-mIoT shields



document version 1.1 / 2025-05-27 © R&D Software Solutions srl
